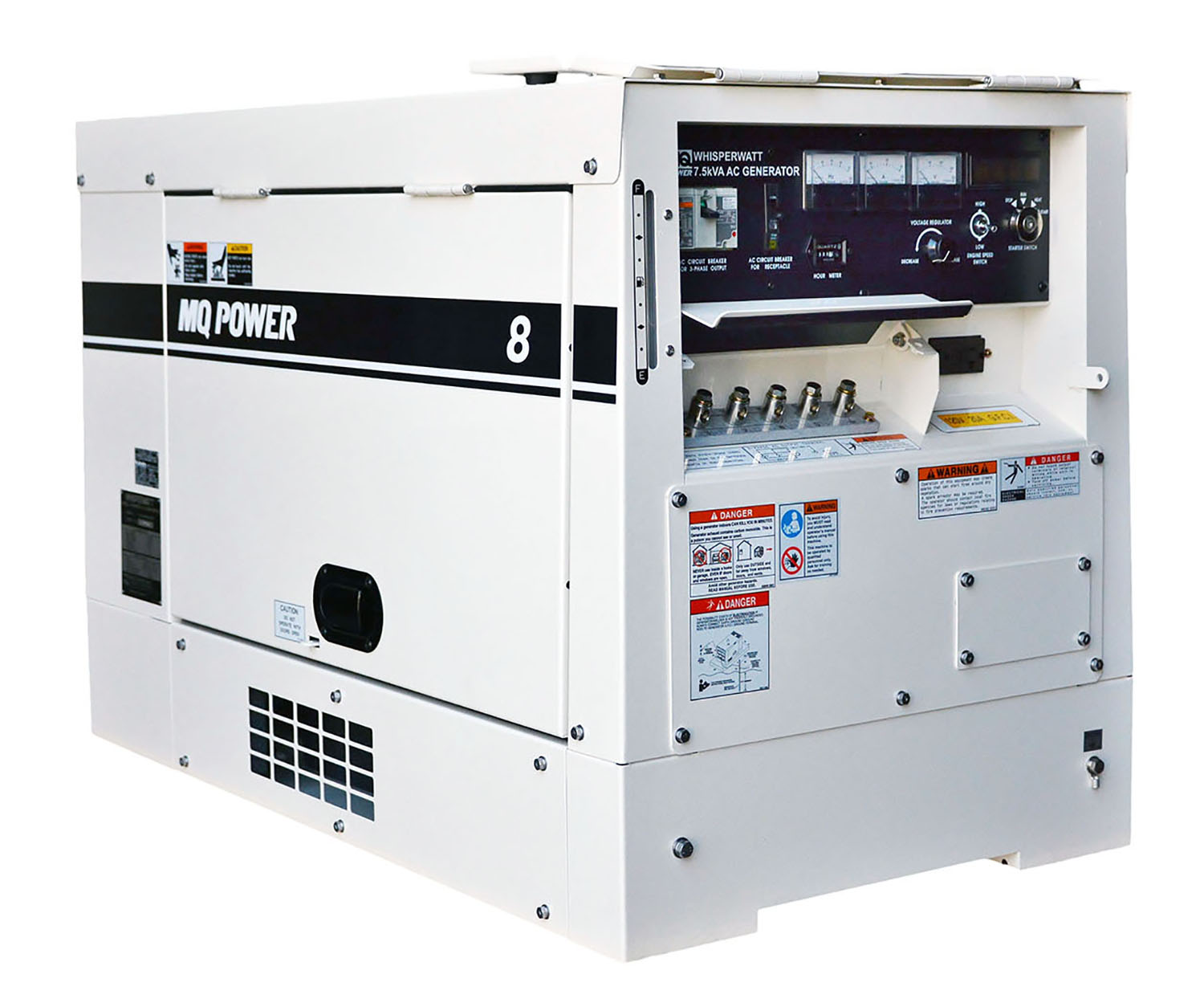

TLG8SSK4F6 kW Prime Output

The TLG8SSK4F is a 7.5 kVA Three phase generator with a 0.8 power factor, 208/240 volt output and has a 2-pole field.

It features a mechanical governor that maintains a steady state 60 Hz within 0.25% from no load to full load. Its comprehensive analog control panel includes instruments such as an amperage, frequency, voltage, and hour meters along with a Main circuit breaker. At 5880 lb (263 kg), the TLG8SSK4F is the lightest model in the series of three phase WhisperWatt Super-Silent Generators..

The TLG8SSK4F series generator is designed to handle the toughest applications in the most extreme environments with remarkable results. This model is available with a magnitude of options which assist in making this the perfect choice for any job site requirements.

Quick Links

Specification Highlights


Prime Rating — 6 kW (7.5 kVA)
Standby Rating — 6.4 kW (8 kVA)
208, 220, 240, 416, 440, 480V Switchable
± 0.0125 Frequency Regulation
(No Load to Full Load)


Kubota / Z482-E3B
EPA Tier 4 Final Certified
Available with PowerBalance


64 dB(A) at 23 ft.
6.8 gallons (26 liters) Fuel Tank Capacity
TRLR10W,TRLRMP, TRLRMPXF Trailer Available


Battery Charger
Trailer-mounted Package
Emergency Stop Switch
Sub-Base Fuel Cells
Cam-Lok Quick Disconnectors
...And More!

Additional Photos

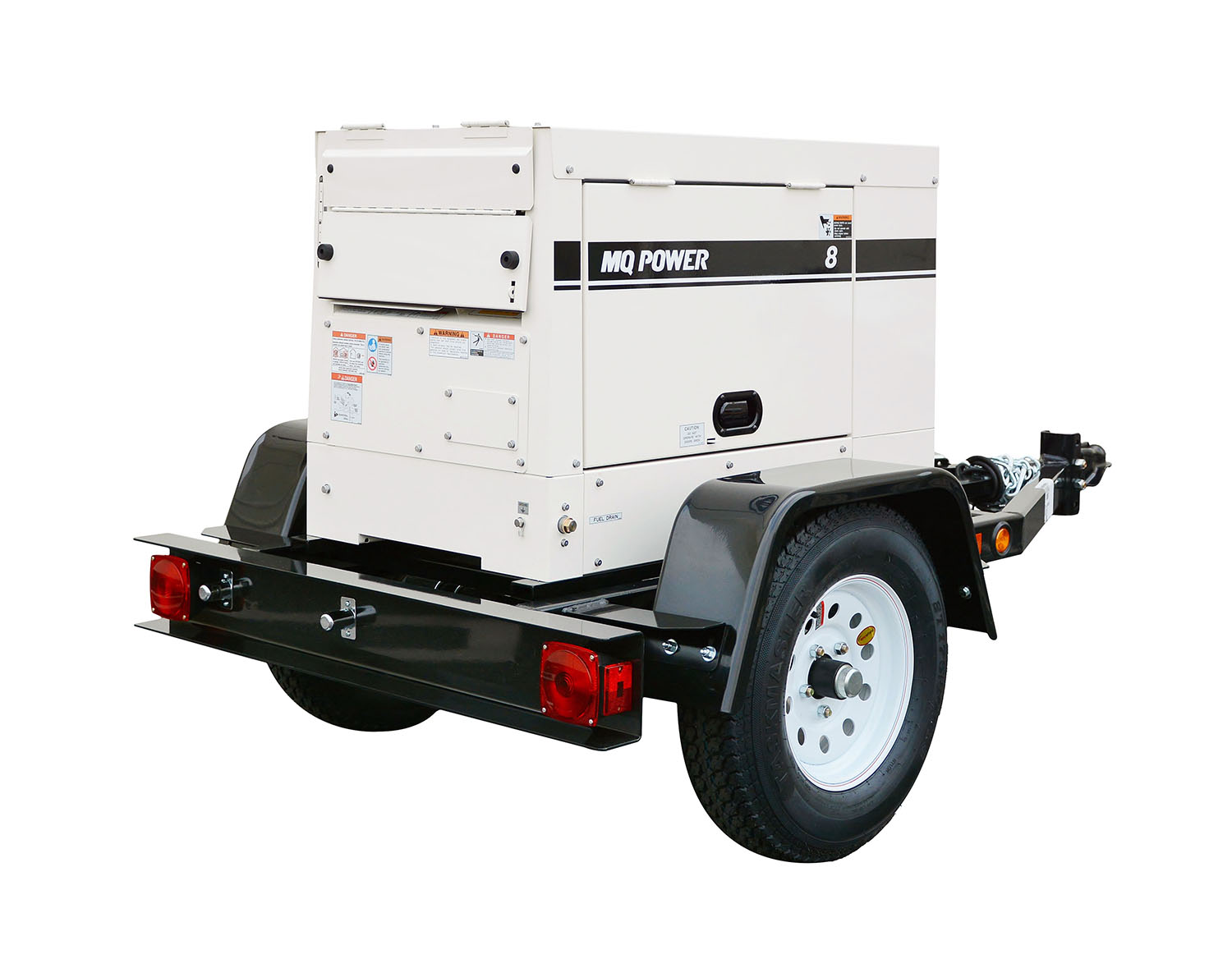

Trailer-Mounted (Rear)

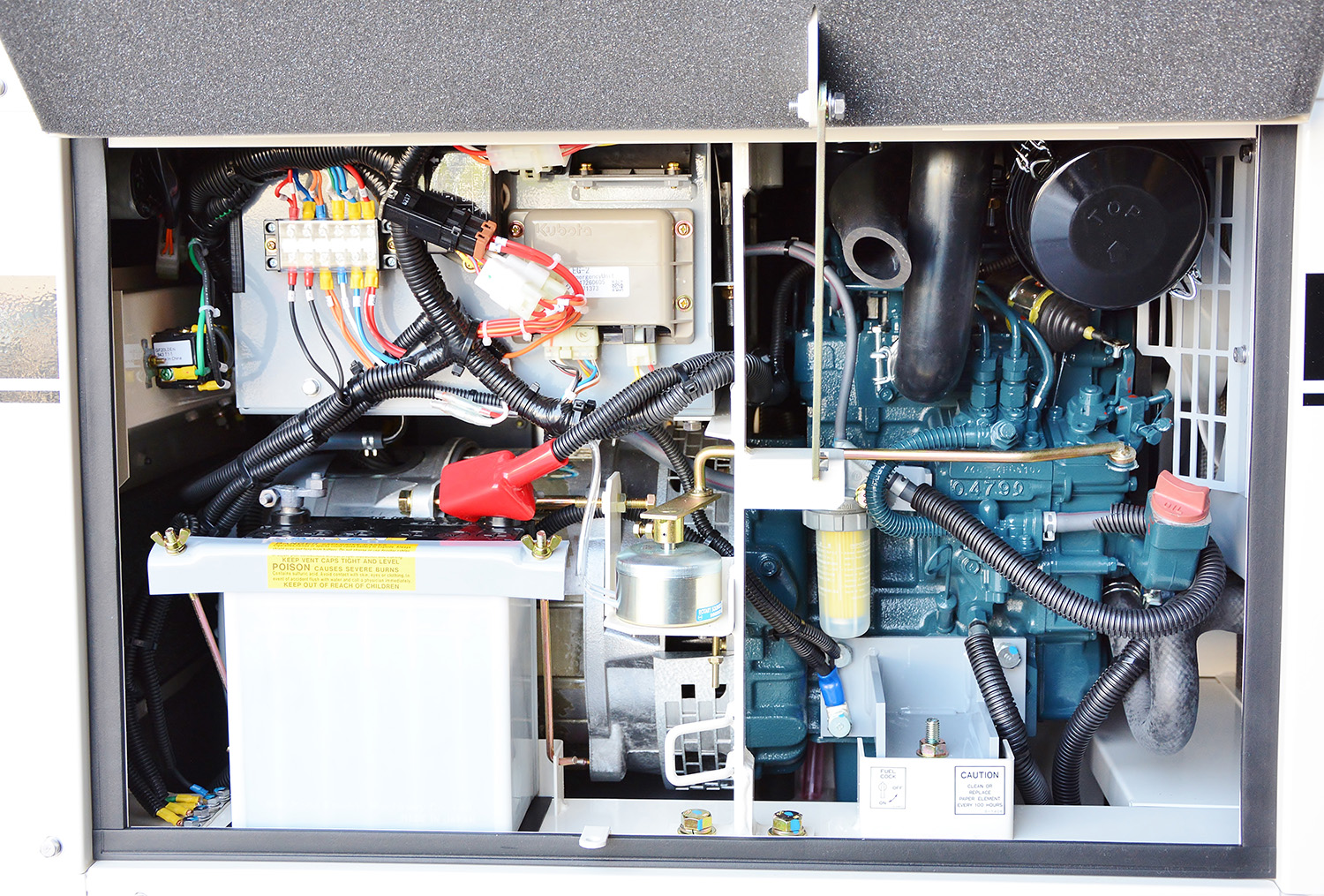

TLG8SSK4F Interior (Left Side)
Interior (Left Side)
TLG8SSK4F Interior (Right Side)
Interior (Right Side)

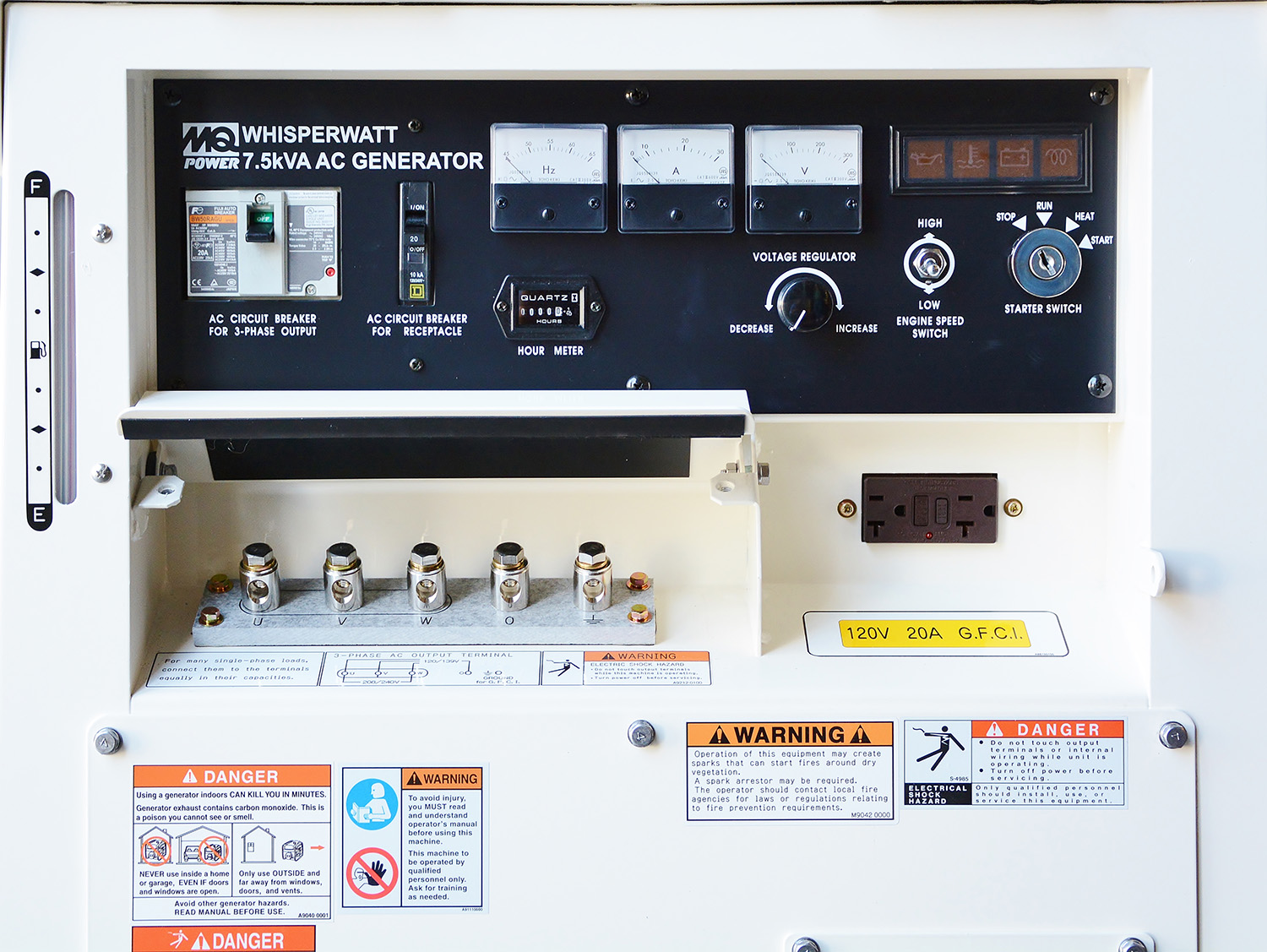

TLG8SSK4F Control Panel
Control Panel

Product Literature

220-800 kVA Spec Comparison Sheet
7.5-150kVA Spec Comparison Sheet

Data Sheets

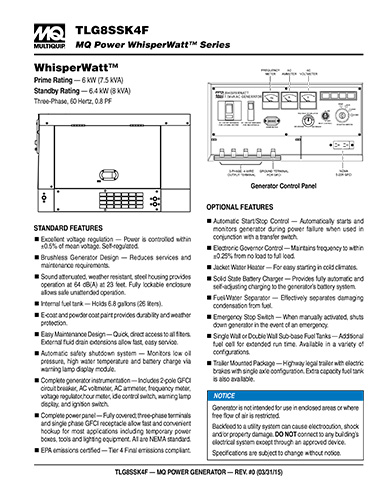

TLG8SSK4F Data Sheet
Data Sheet

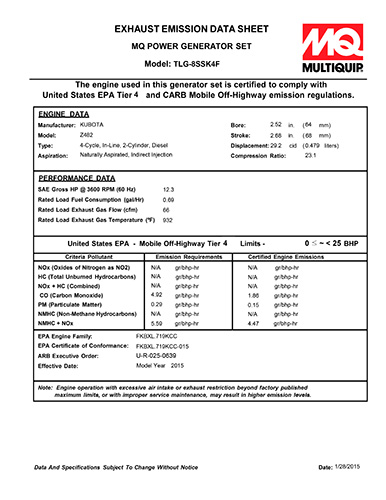

Emissions Data Sheet
Emissions Data Sheet
TRLR180XF Trailer Data Sheet

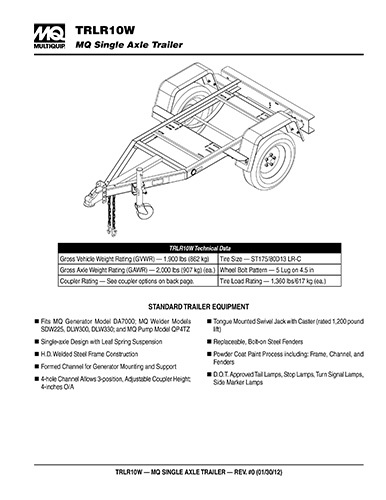

TRLR10W Trailer Data Sheet
TRLR180XF Trailer Data Sheet

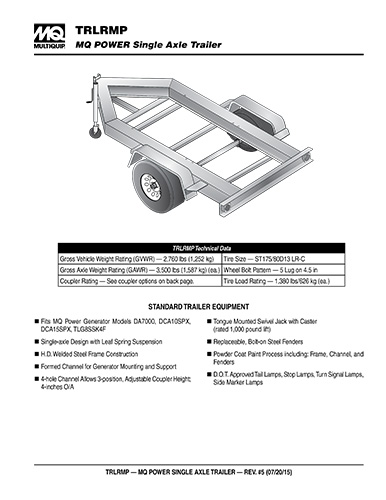

TRLRMP Trailer Data Sheet
TRLR180XF Trailer Data Sheet

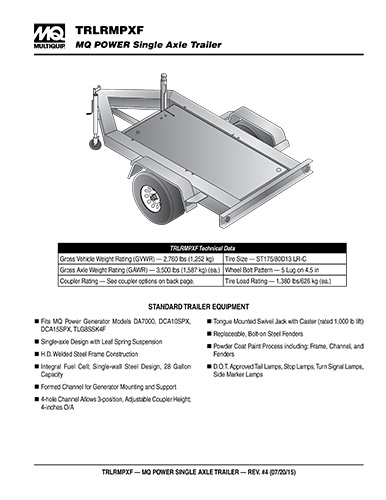

TRLRMPXF Trailer Data Sheet

Outline Drawings

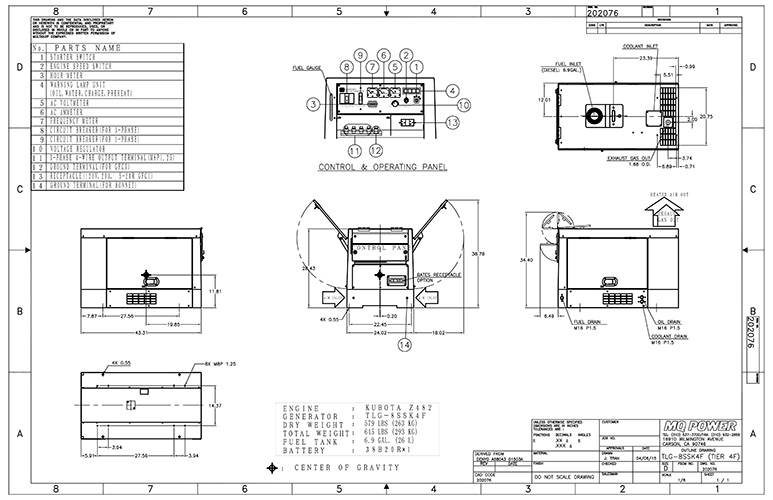

TLG8SSK4F Generator Outline
Generator Outline
TRLR10W Trailer Outline

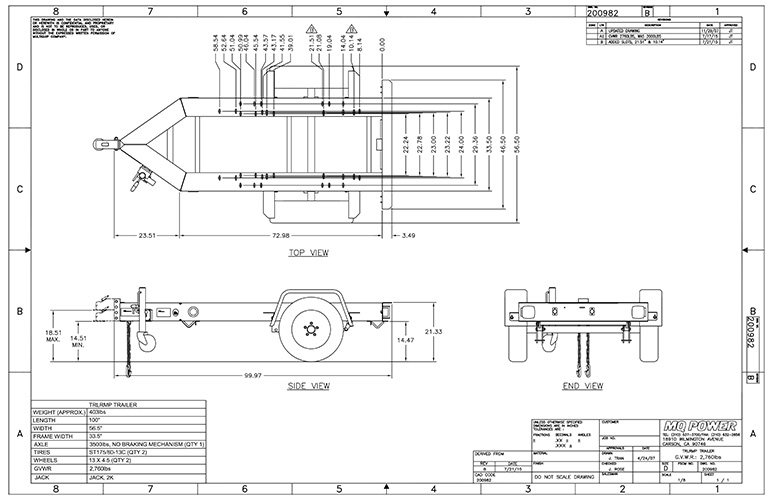

TRLRMP Trailer Outline
TLG8SSK4F Generator Mounted on TRLR10W Trailer

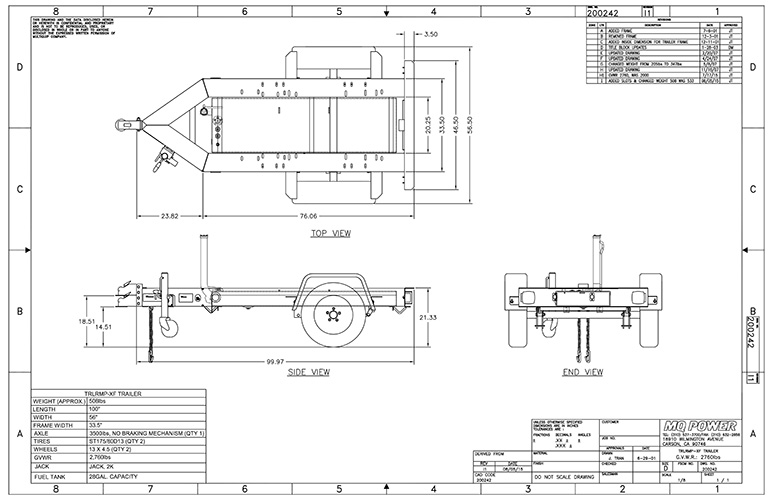

TRLRMPXF Trailer Outline
TRLR10W Trailer Outline

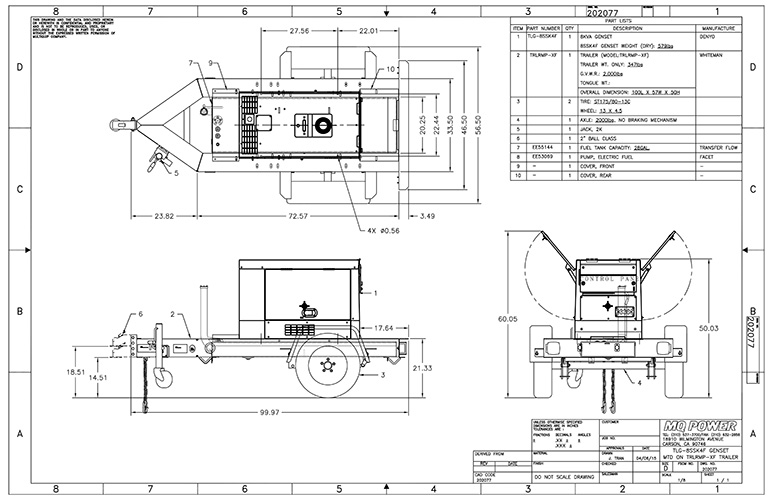

Generator Mounted on TRLRMPXF Trailer Outline
