DCA25SSIU4F
25 kVA Prime Output

The DCA25SSIU4F offers a prime rating of 20 kW (25 kVA) and a standby rating of 22 kW (27.5 kVA).

Our patented open delta generator winding provides precise voltage control, allowing superior motor starting capability. An electronic governor maintains frequency to ± 0.25% from no load to full load. It features an auto start stop that allows the generator to start from a remote location. The unit features an e-coat and powder-coated, weatherproof steel housing that allows a substantially low operating noise level of 65 dB(A).

A comprehensive analog control panel provides instrumentation including AC ammeter, AC voltmeter, frequency meter, AC circuit breaker, engine gauges and much more.

Quick Links


Specification Highlights

Generator

Prime Rating — 20 kW (220 kVA)
Standby Rating — 194 kW (25 kVA)
Single/Three-Phase, 60 Hz, 0.8 PF
± 0.25 Frequency Regulation
(No Load to Full Load)

Engine

Isuzu / 4LE2T
EPA Tier 4 Final Certified

Enclosure

65 dB(A) at 23 ft.
41.7 gal. (158 L) Fuel Tank Capacity
TRLR25US Trailer Available

Options

Battery Charger
Trailer-mounted Package
Emergency Stop Switch
Sub-Base Fuel Cells
Cam-Lok Quick Disconnectors
...And More!

Additional Photos

DCA25SSIU4F Interior (Left Side)
Interior (Left Side)
DCA25SSIU4F Control Panel
Control Panel

Product Literature

220-800 kVA Spec Comparison Sheet
7.5-150kVA Spec Comparison Sheet

Data Sheets

DCA25SSIU4F Data Sheet
Data Sheet
Emissions Data Sheet
Emissions Data Sheet
TRLR25US Trailer Data Sheet
TRLR25US Trailer Data Sheet

Outline Drawings

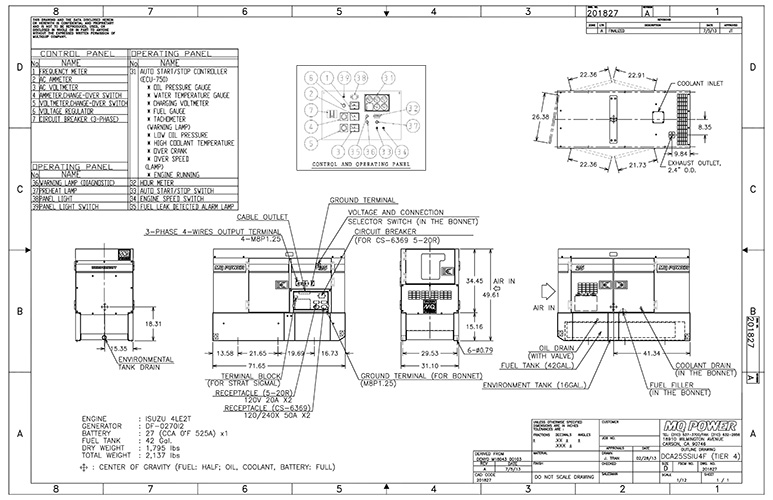

DCA25SSIU4F Generator Outline
Generator Outline
TRLR25US Trailer Outline
TRLR25US Trailer Outline
DCA25SSIU4F Generator Mounted on TRLR25US Trailer
Generator Mounted on TRLR25US Trailer
