DCA125SSIU4F
220 kVA Prime Output

The DCA125SSIU4F offers a prime rating of 100 kW (125 kVA) and a standby rating of 110 kW (137.5 kVA).

ur patented open delta generator winding provides precise voltage control, allowing superior motor starting capability. An electronic governor maintains frequency to ± 0.25% from no load to full load. It features an auto start stop that allows the generator to start from a remote location.

The unit features a powder-coated / e-coated, weatherproof steel housing that allows a substantially low operating noise level of 66 dB(A). A comprehensive analog control panel provides instrumentation including AC ammeter, AC voltmeter, frequency meter, AC circuit breaker, engine gauges and much more

Quick Links


Specification Highlights

Generator

Prime Rating — 100 kW (125 kVA)
Standby Rating — 110 kW (137.5 kVA)
Three-Phase, 208, 220, 240, 416, 440, 460, 480V Switchable
± 0.25 Frequency Regulation
(No Load to Full Load)

Engine

Isuzu / BR-4HK1X
EPA Tier 4 Final Certified

Enclosure

66 dB(A) at 23 ft.
169 gallons (640 liters) Fuel Tank Capacity
TRLR125US Trailer Available

Options

Battery Charger
Trailer-mounted Package
Emergency Stop Switch
Sub-Base Fuel Cells
Cam-Lok Quick Disconnectors
...And More!

Additional Photos

DCA125SSIU4F Trailer-Mounted (Front)
Trailer-Mounted (Front)
DCA125SSIU4F Trailer-Mounted (Doors Open)
Trailer-Mounted (Doors Open)
DCA125SSIU4F Interior (Left Side)
Interior (Left Side)
DCA125SSIU4F Interior (Right Side)
Interior (Right Side)
DCA125SSIU4F Control Panel
Control Panel

Product Literature

220-800 kVA Spec Comparison Sheet
7.5-150kVA Spec Comparison Sheet

Data Sheets

DCA125SSIU4F Data Sheet
Data Sheet
Emissions Data Sheet
Emissions Data Sheet
TRLR220XF Trailer Data Sheet
TRLR125US Trailer Data Sheet

Outline Drawings

DCA125SSIU4F Generator Outline
Generator Outline

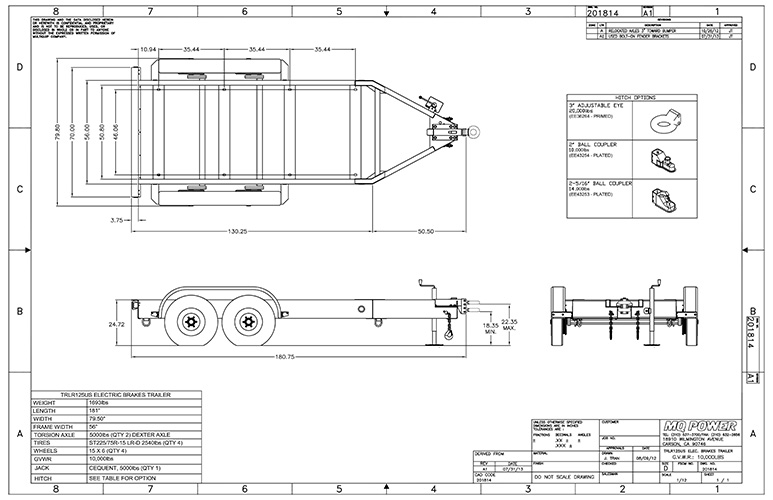

TRLR125USE Trailer Outline
TRLR125USE Trailer Outline
DCA125SSIU4F Generator Mounted on TRLR125USHTrailer
TRLR125USH Trailer Outline
TRLR125USE Trailer Outline
Generator Mounted on TRLR125USE Trailer Outline
DCA125SSIU4F Generator Mounted on TRLR125USHXFH Trailer
Generator Mounted on TRLR125USH Trailer Outline
