DCA10SPXU4C10 kW Prime Rating

TThe DCA10SPXU4C is a 10 kW Single Phase generator with 1.0 power factor and 120/240 volt output.

The unit features a steel, sound attenuated, weatherproof and lockable housing. Its easy to maintain design offers quick and direct access to all filters and drain extensions. An electronic governor control maintains steady state 60 Hz within 0.25% from no load to full load. Its comprehensive analog control panel includes several instruments including an ammeter, frequency meter, AC circuit breaker and much more.

Our compact and portable single-phase WhisperWatt Super-Silent Generators come fully equipped with just about every control and convenience feature imaginable. They are great sources of power for many applications including construction and residential.

Quick Links


Specification Highlights

Generator

Prime Rating — 10 kW
Standby Rating — 11kW
Single Phase, 120/240 V
± 0.25 Frequency Regulation
(No Load to Full Load)

Engine

Kubota / D1503
EPA Tier 4 Certified

Enclosure

61 dB(A) at 23 ft.
16.4 gallons (62 liters)
TRLRMP,TRLRMPXF,TRLR10W Trailer Available

Options

Battery Charger
Trailer-mounted Package
Emergency Stop Switch
Sub-Base Fuel Cells
Cam-Lok Quick Disconnectors
...And More!

Additional Photos

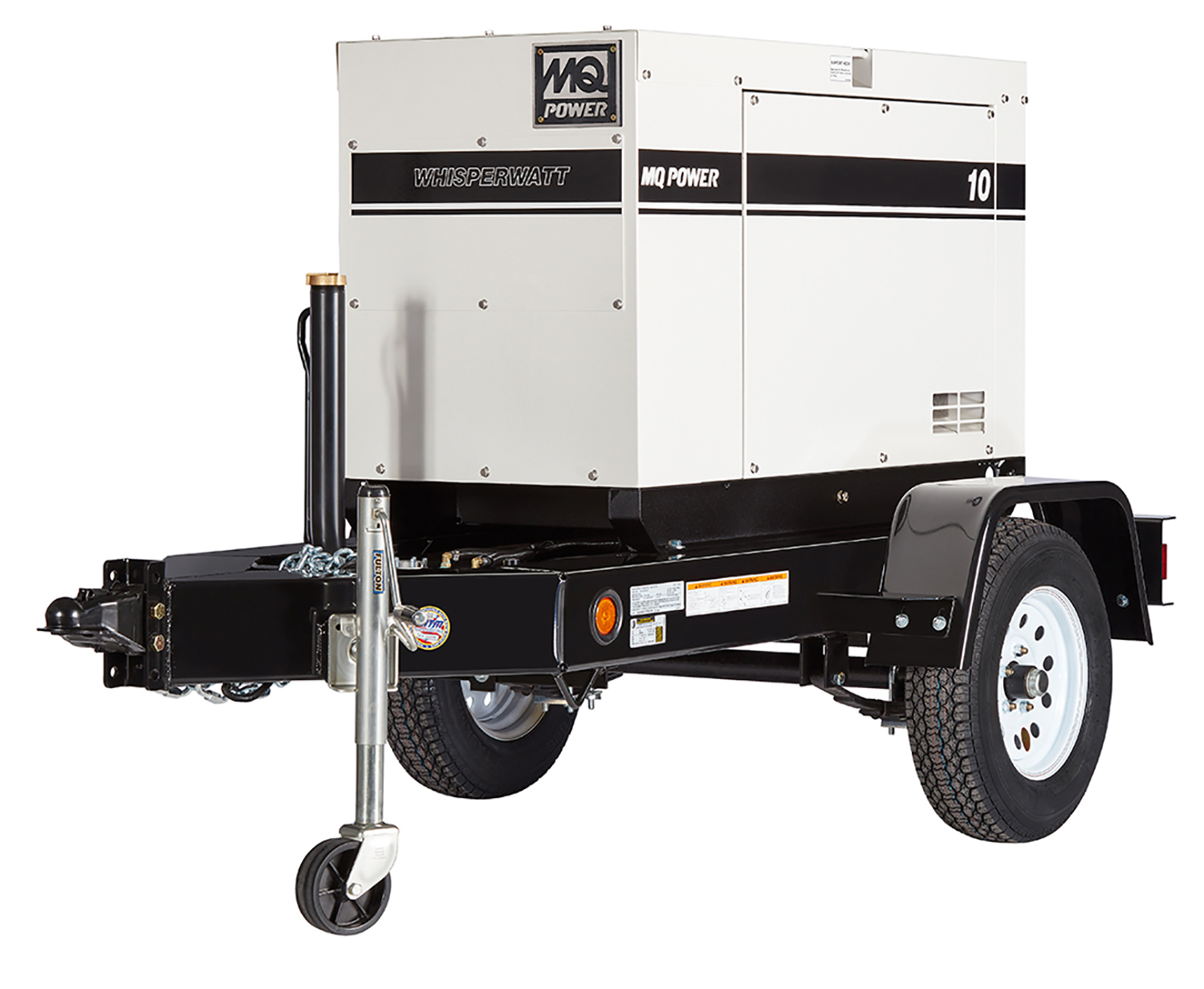

DCA10SPXU4C Trailer-Mounted (Front)
Trailer-Mounted (Front)
Trailer-Mounted (Rear)
Trailer-Mounted (Rear)
DCA10SPXU4C Trailer-Mounted (Doors Open)
Trailer-Mounted (Doors Open)

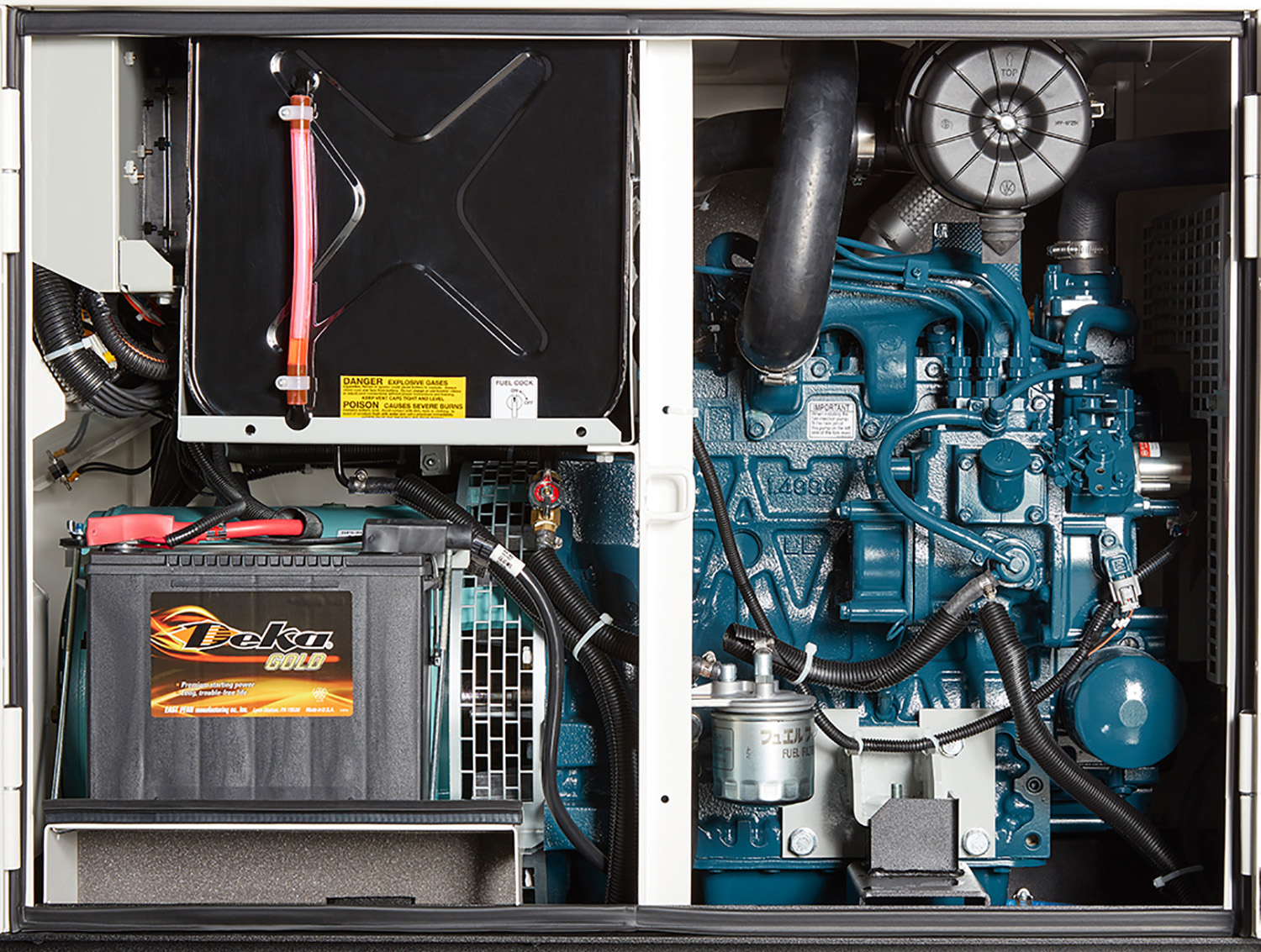

DCA10SPXU4C Interior (Left Side)
Interior (Left Side)
DCA10SPXU4C Control Panel
Control Panel

Product Literature

220-800 kVA Spec Comparison Sheet
7-36 kW Spec Comparison Sheet

Data Sheets

DCA10SPXU4C Data Sheet
Data Sheet
Emissions Data Sheet
Emissions Data Sheet
TRLRMP Trailer Data Sheet
TRLRMP Trailer Data Sheet
TRLRMPXF Trailer Data Sheet
TRLRMPXF Trailer Data Sheet
TRLR10W Trailer Data Sheet
TRLR10W Trailer Data Sheet

Outline Drawings

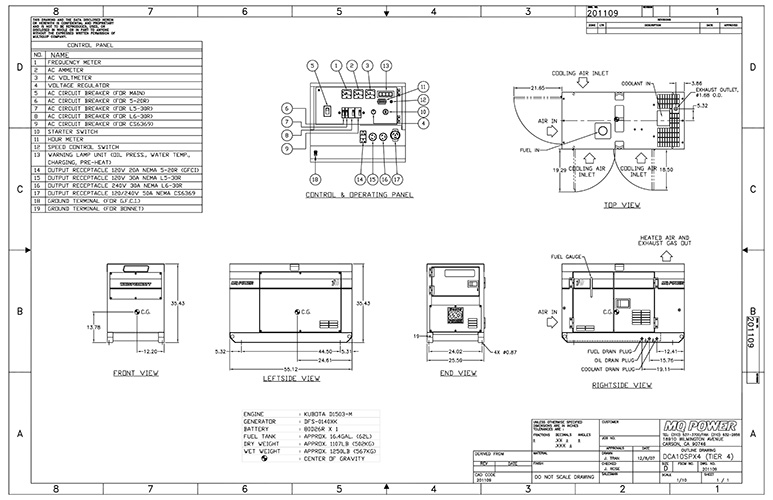

DCA10SPXU4C Generator Outline
Generator Outline
TRLRMP Trailer Outline
TRLRMP Trailer Outline
TRLRMPXF Trailer Outline
TRLRMPXF Trailer Outline
Generator Mounted on TRLR25MPXF Trailer Outline
Generator Mounted on TRLRMPXF Trailer Outline
